BIO-X8

BIO-X8 is a cost-effective expansion interface designed to seamlessly increase the capacity of an EclerPLEX digital host matrix. This unit contributes 8 additional analogue audio input ports and 8 analogue audio output ports to the system’s default configuration. A maximum of two BIO-X8 units can be connected to a single EclerPLEX host matrix, allowing for a maximum configuration of 24 analogue audio input ports, 24 analogue audio output ports, and up to 24x24 GPIO control ports.

• EclerPLEX audio I/O & control expansion unit, compatible with VIVO host units.

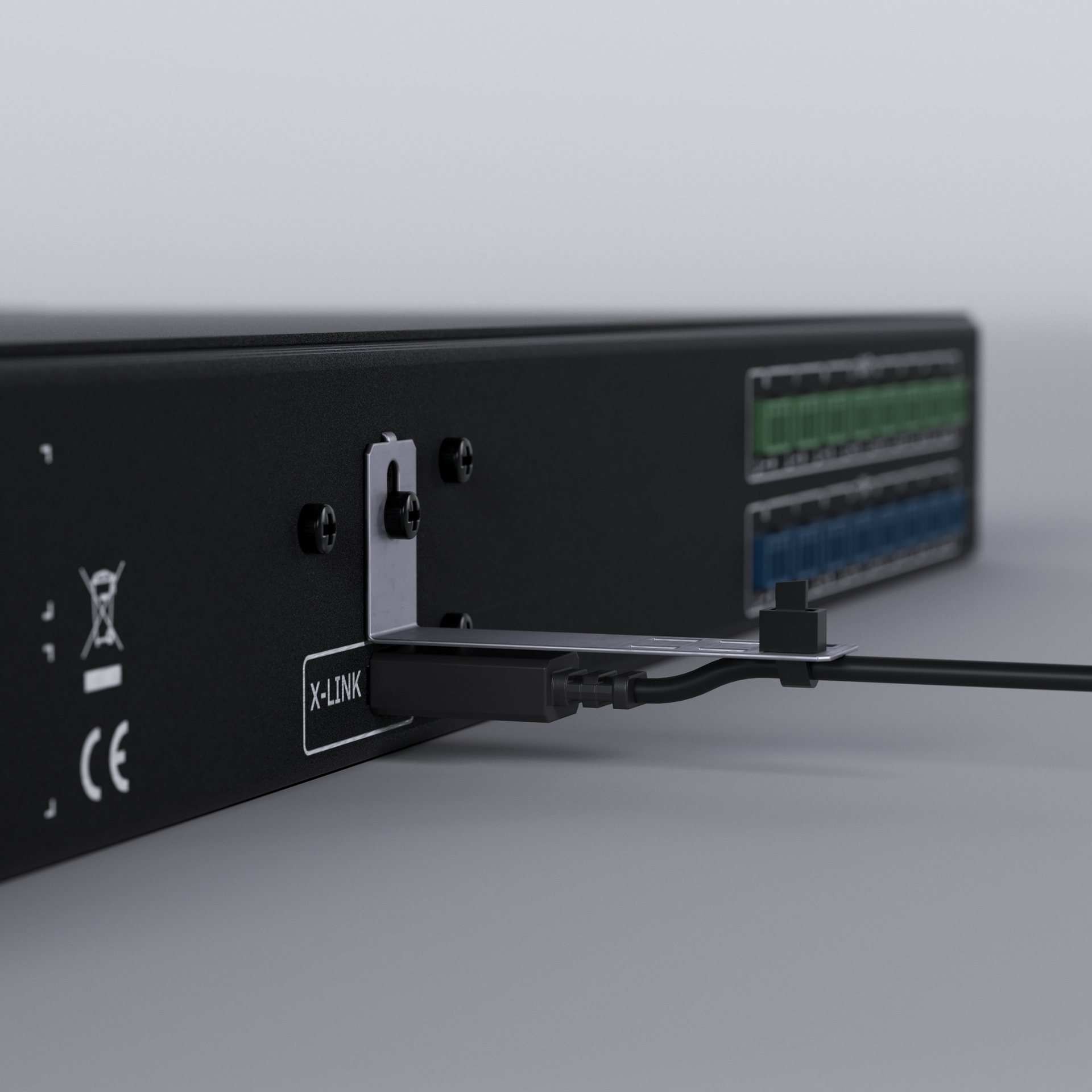

• Connection via X-link to the VIVO host unit (1m Ecler certified X-link cable included).
• Expansion features (added to the host VIVO unit ones):
• • 8 MIC / LINE analogue audio inputs ports (+48V Phantom selectable per port).
• • 8 LINE analogue audio output ports.
• A maximum of 2x BIO-X8 or BIO X8G units can be connected to a single VIVO host unit, using its 2x X-link expansion ports.
